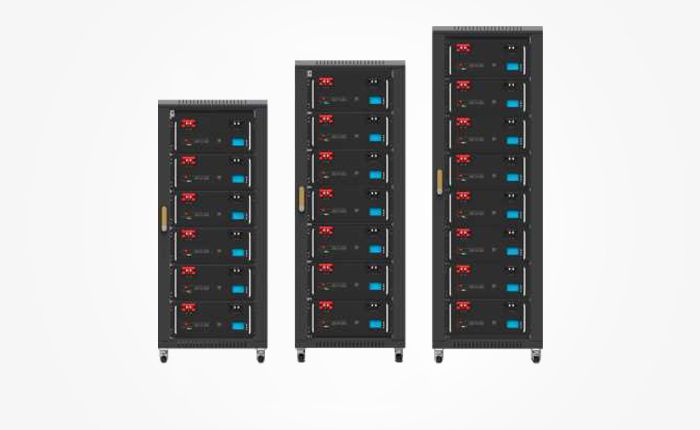

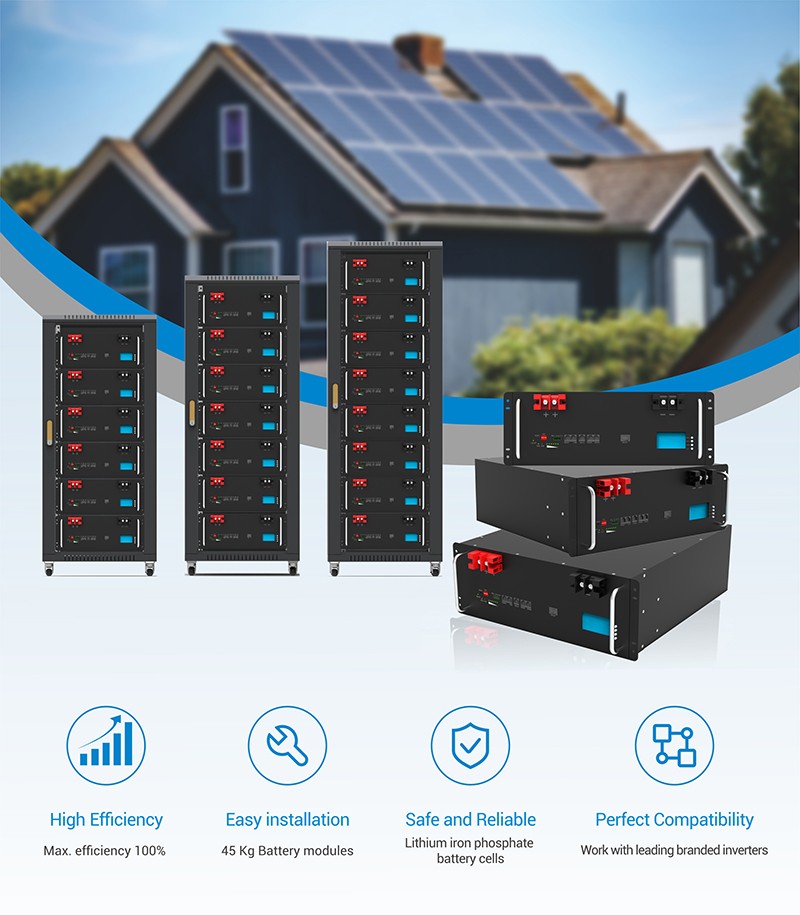

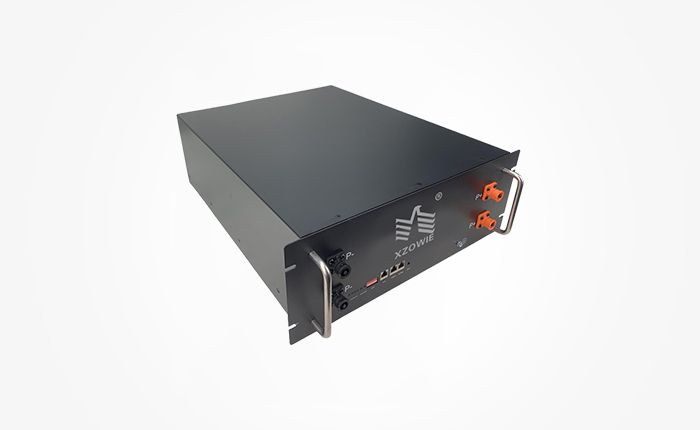

XZOWIE-Rack Battery 48V
Model NO: Rack Battery 48V
Nominal Voltage: 48V
Design Life: More than 20 years
IP Class: Ip31
Cycle Life: ＞5000cycle
Parallel Connection: Parallel connection is optional (up to 15P)
Design life: More than 20 years

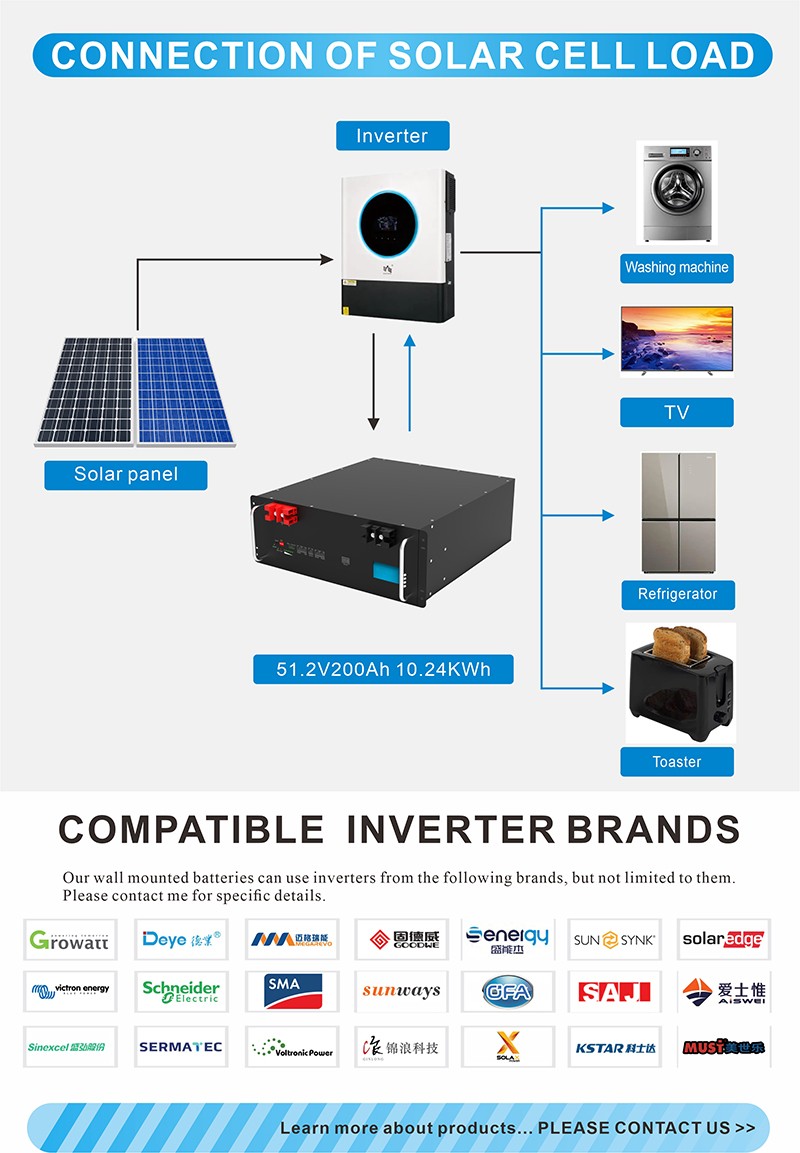

Wide Application: Home energy storage,RV energy storage, UPS backup power supply
| parameter name | parameter value |
|---|---|
| Model NO | Rack Battery 48V |
| Nominal Voltage | 48V |
| Design Life | More than 20 years |
| IP Class | Ip31 |
| Cycle Life | ＞5000cycle |
| Parallel Connection | Parallel connection is optional (up to 15P) |
| Design life | More than 20 years |
| Wide Application | Home energy storage,RV energy storage, UPS backup power supply |
| Service | Support wholesaler or OEM services |
| Model | specifications | Charge current(A) | Battery capacity | Product size | Packaging size | Net weight | Gross weight | Download |
| XZOWIE4850 | 48V50AH | 10 | 2.4kWh | 451*450*177mm(17.8*17.7*7 in) | 545*525*255mm(21.4*20.7*10 in) | 37.2KG(82lbs) | 40.4(89lbs) | |
| XZOWIE4880 | 48V80AH | 16 | 3.84kWh | 465*440*191mm(18.3*17.3*8 in) | 560*515*265mm(22*20*10 in) | 39.9KG(88lbs) | 41.1KG(91lbs) | |
| XZOWIE48100 | 48V100AH | 20 | 4.8kWh | 490*440*177mm(19.3*17.3*7 in) | 585*515*345mm(23*20.3*13.6 in) | 41.6KG(91.7lbs) | 45.4KG(100lbs) | |
| XZOWIE48120 | 48V120AH | 24 | 5.76kWh | 470*390*155mm(15.5*15.4*6 in) | 610*490*255mm(24*19.3*10 in) | 39KG(86lbs) | 42.2KG(93lbs) | |
| XZOWIE48150 | 48V150AH | 30 | 7.2kWh | 500*400*260mm(19.7*15.7*10.2 in) | 575*515*335mm(22.6*20.3*13.2 in) | 76.2KG(168lbs) | 76.6KG(168.9lbs) | |
| XZOWIE48200 | 48V200AH | 40 | 9.6kWh | 590*370*245mm(23.2*14.6*9.6 in) | 680*470*350mm(26.8*18.5*13.8 in) | 78.8KG(173.7lbs) | 81.5KG(180lbs) |
